Product Description

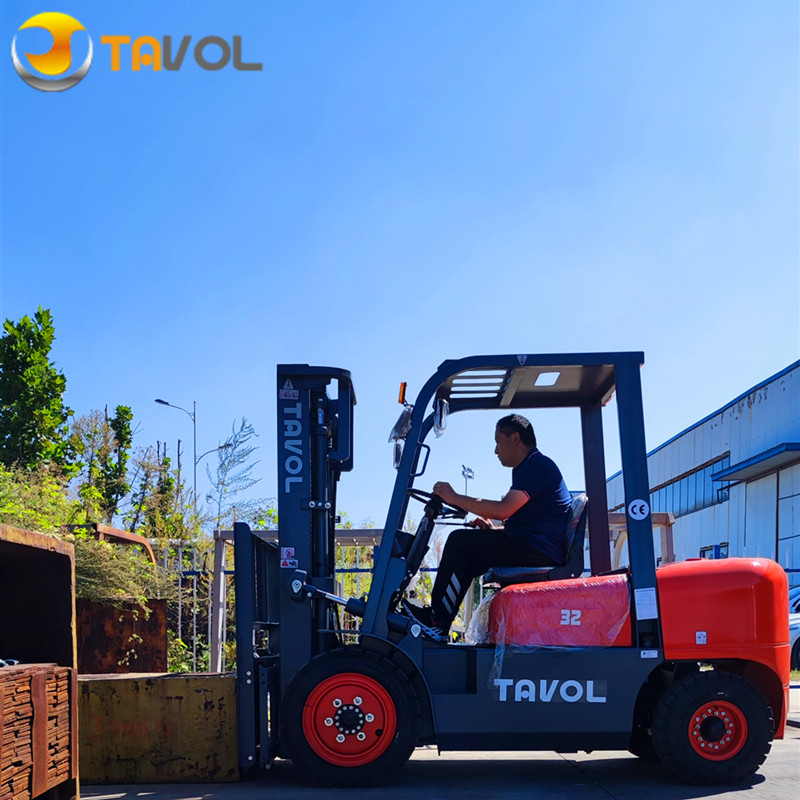

Container Forklift Diesel Forklift Truck 1ton 2ton 3ton 4ton 5 ton Montacarga
Tavol forklift adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand which is powerful, dependable, easy to service ,and with low emissions and fuel consumption.Our forklift can reduce your cost,provide greater productivity and profitability for you.
![]() | ![]() | ![]() |
Anti-Fatigue Seat. New suspension adjustable seat,More comfortable when working | Hydraulic Steering Make the steering smoother and quicker to ensure the safety of the driver | Compound Chain Strong pull and easy lifting,thincking to prevent safety accidents |
![]() | ![]() | ![]() |
Famous Brand Engine powerful, dependable, easy to service ,and with low emissions and fuel consumption | Safe Overhead Guard Protect the driver | Wear-resistant tire Adapt different roads and working environment. |
![]() | ![]() | ![]() |
LED Light Save electricity, longer service life. | Electric Switch Convenient to turn the lights on and off | Instrument Board See driving data clearly |
PRODUCT SPECIFICATIONS
Model | CPC20/CPCD20 | CPC25/CPCD25 | CPC32/CPCD32 | CPC36/CPCD36 | |
Rated Loading Capacity(kg) | 2000 | 2500 | 3200 | 3600 | |
Load Center Distance(mm) | 500 | 500 | 500 | 500 | |
Drive Form | Diesel | Diesel | Diesel | Diesel | |
Max Lifting Speed (Full load)(mm/h) | 400 | 400 | 475 | 450 | |
Max Driving Speed (Empty/Full load)(km/h) | 17/19 | 17/19 | 18/20 | 18/20 | |
Fork Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 | |
Mast Tilt Angle (Forward and Backward) | 6°/12° | 6°/12° | 6°/12° | 6°/12° | |
Min. Turning Radius(mm) | 2450 | 2450 | 2530 | 2540 | |
Min. Ground Clearance(mm) | 110 | 110 | 135 | 135 | |
Length (Including Fork)(mm) | 3605 | 3605 | 3970 | 4000 | |
Width(mm) | 1160 | 1160 | 1230 | 1230 | |
Height(Door Frame Indented) | 2095 | 2095 | 2110 | 2110 | |
Max working Height(mm)(Door Frame Out Completely) | 4080 | 4080 | 4270 | 4270 | |
Height From Ground to Overhead Guard(mm) | 2095 | 2095 | 2105 | 2105 | |
Front Overhang(mm) | 451 | 451 | 465 | 465 | |
Wheel Base(mm) | 1640 | 1640 | 1775 | 1775 | |
Front Wheel Track(mm) | 970 | 970 | 1000 | 1000 | |
Rear Wheel Track(mm) | 970 | 970 | 970 | 970 | |
Front Wheel Tyre | 7.00-12 | 7.00-12 | 28*9-15 | 25*9-15 | |
Rear Wheel Tyre | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 | |
Self Weight(kg) | 3320 | 3600 | 4250/4290 | 4660/4700 | |
Fork Width(mm) | 122 | 122 | 122 | 122 | |
Fork Thickness(mm) | 40 | 40 | 45 | 45 | |
Block Shelf Height | 1000 | 1000 | 1225 | 1225 | |
Standard Fork Length(mm) | 1070 | 1070 | 1220 | 1220 | |
Engine Rated Power(kw) | 36.8 | 36.8 | 36.8 | 36.8 | |
Engine Speed At Rated Power (rmp) | 2500 | 2500 | 2500 | 2500 | |
Engine Maximum Torque(Nm) | 157 | 157 | 156 | 156 | |
Engine Speed At Maximum Torque(rpm) | 1800 | 1800 | 1700~1900 | 1700~1900 | |
Variable speed form | Mechanical / Hydraulic | Mechanical / Hydraulic | Mechanical/ Hydraulic | Mechanical/ Hydraulic |
PACKING&SHIPPING

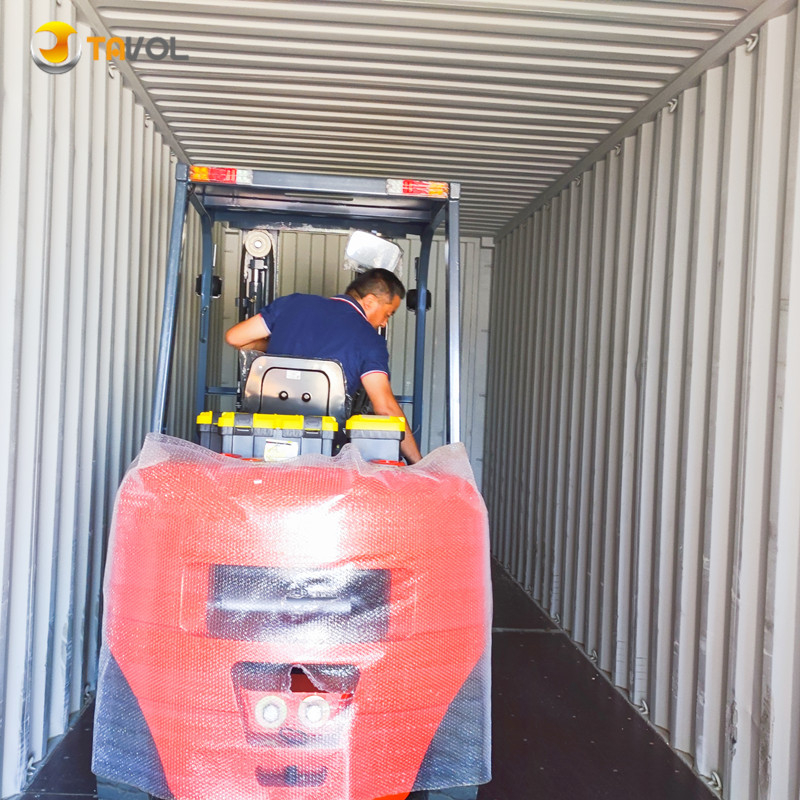

![]() | One set is packed in plywood case,delivered by LCL. Two sets and more forklifts are packed in one container,all wheels fixed with wooden corner block, tightened with frap rope,et |
![]() | What can we do for you? 1. We are manufacture,also group company,which has more than 20 years export experience. 2.All machines sold must be tested 3-5 times before shipment,100% quality assurance. 3. 7*24 hours technical support by email,telephone or video online. 4. We provide free wearing parts, instructional videos, and provide pre-sale, in-sale and after-sale service support for life. 5.24 months warranty time. |
1.Q:What your term of payment?
A:We accept TT, Letter of credit, Online bank payment, Support Alibaba trade insurance etc.
2.Q:How about your delivery time?
A: Lead time 5-10 days for in stock, If need customized, it will take about 20 working days.
3.Q:What is the MOQ?
A: 1 set is okay. More quantity wit nice discount.
4.Q:How long is your product warranty?
A:The product warranty period is 24 months.
5.Q:What should we do if there have quality problems?
A:During warranty period we will provide free spare parts for free.
